Toyota Corolla Manual de Taller: Componentes

COMPONENTES

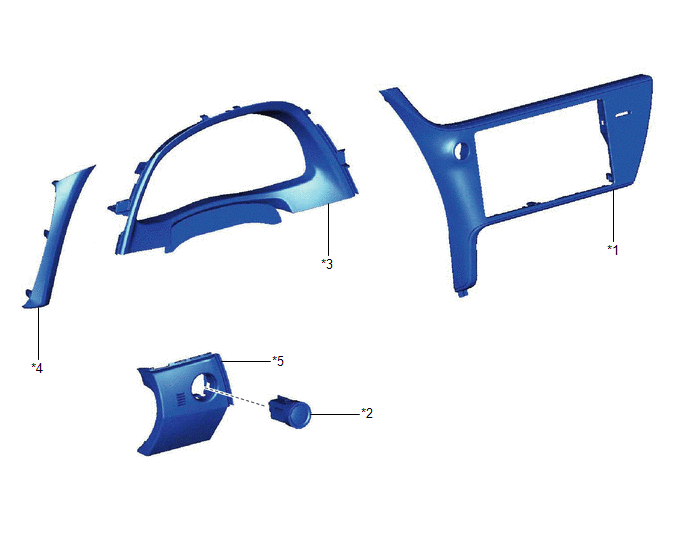

ILUSTRACIÓN

*1

SUBCONJUNTO CENTRAL DE LA MOLDURA DE ACABADO DEL GRUPO DE INSTRUMENTOS

*2

INTERRUPTOR DEL MOTOR

*3

CONJUNTO DE LA MOLDURA DE ACABADO DEL GRUPO DE INSTRUMENTOS

*4

CONJUNTO DE MEDIDORES DEL CAPÓ N° 1

*5

BASE DEL ORIFICIO DEL INTERRUPTOR N° 1

-

-

    Interruptor Del Motor

    ExtracciÓn
