Toyota Corolla Manual de Taller: Montaje

MONTAJE

PROCEDIMIENTO

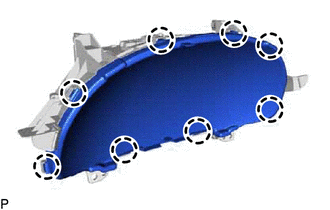

1. COLOQUE EL CRISTAL DEL JUEGO DE INSTRUMENTOS (para modelos estándar)

(a) Enganche las 8 garras e instale el cristal del juego de instrumentos.

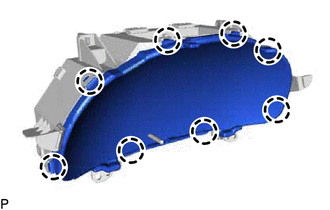

2. COLOQUE EL CRISTAL DEL JUEGO DE INSTRUMENTOS (para modelos deportivo)

(a) Enganche las 8 garras e instale el cristal del juego de instrumentos.
