UBICACIÓN DE LAS PIEZAS

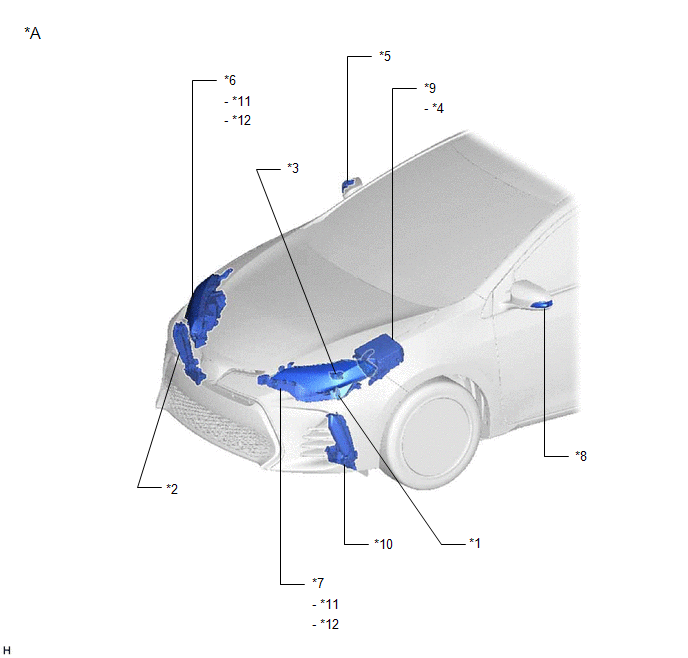

ILUSTRACIÓN

*A

Para faros de doble haz

-

-

*1

CONJUNTO DEL INTERRUPTOR DE LAS LUCES DE MARCHA ATRÁS (para transeje manual (EC65))

*2

CONJUNTO DE LAS LUCES DE CONDUCCIÓN DIURNA DERECHO

*3

CONJUNTO DEL INTERRUPTOR DE POSICIÓN DE ESTACIONAMIENTO/PUNTO MUERTO (para CVT (K313))

*4

RELÉ H-LP

*5

CONJUNTO DERECHO DE LOS INTERMITENTES LATERALES (con intermitentes laterales)

*6

CONJUNTO DEL FARO DERECHO

*7

CONJUNTO DEL FARO IZQUIERDO

*8

CONJUNTO IZQUIERDO DE LOS INTERMITENTES LATERALES (con intermitentes laterales)

*9

CONJUNTO DEL BLOQUE DE RELÉS Y BLOQUE DE EMPALMES DEL COMPARTIMIENTO DEL MOTOR

- RELÉ DIM

- RELÉ BKUP LP (para CVT)

- FUSIBLE H-LP MAIN

- FUSIBLE H-LP RH-LO

- FUSIBLE H-LP LH-LO

- FUSIBLE H-LP RH-HI

- FUSIBLE H-LP LH-HI

- FUSIBLE TURN & HAZ

*10

CONJUNTO DE LAS LUCES DE CONDUCCIÓN DIURNA IZQUIERDO

*11

ZÓCALO DE LA LUZ DE ESTACIONAMIENTO Y DEL INTERMITENTE DELANTERO

*12

ZÓCALO DE LA LUZ DE POSICIÓN LATERAL DELANTERA

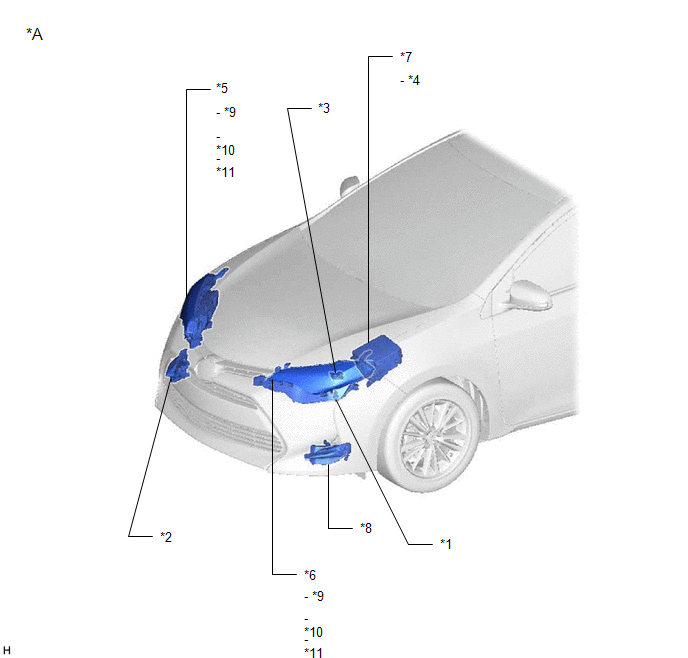

ILUSTRACIÓN

*A

Para faros de un solo haz

-

-

*1

CONJUNTO DEL INTERRUPTOR DE LAS LUCES DE MARCHA ATRÁS (para transeje manual (EC65))

*2

CONJUNTO DE LAS LUCES DE CONDUCCIÓN DIURNA DERECHO (con luces de conducción diurna independientes)

*3

CONJUNTO DEL INTERRUPTOR DE POSICIÓN DE ESTACIONAMIENTO/PUNTO MUERTO (para CVT (K313))

*4

RELÉ H-LP

*5

CONJUNTO DEL FARO DERECHO

*6

CONJUNTO DEL FARO IZQUIERDO

*7

CONJUNTO DEL BLOQUE DE RELÉS Y BLOQUE DE EMPALMES DEL COMPARTIMIENTO DEL MOTOR

- RELÉ DIM

- FUSIBLE H-LP MAIN

- FUSIBLE H-LP RH-LO

- FUSIBLE H-LP LH-LO

- FUSIBLE H-LP RH-HI

- FUSIBLE H-LP LH-HI

*8

CONJUNTO DE LAS LUCES DE CONDUCCIÓN DIURNA IZQUIERDO (con luces de conducción diurna independientes)

*9

ZÓCALO DE LA LUZ DE ESTACIONAMIENTO Y DEL INTERMITENTE DELANTERO

*10

ZÓCALO DE LA LUZ DE POSICIÓN LATERAL DELANTERA

*11

LUZ DE CONDUCCIÓN DIURNA (con luz de conducción diurna integrada)

-

-

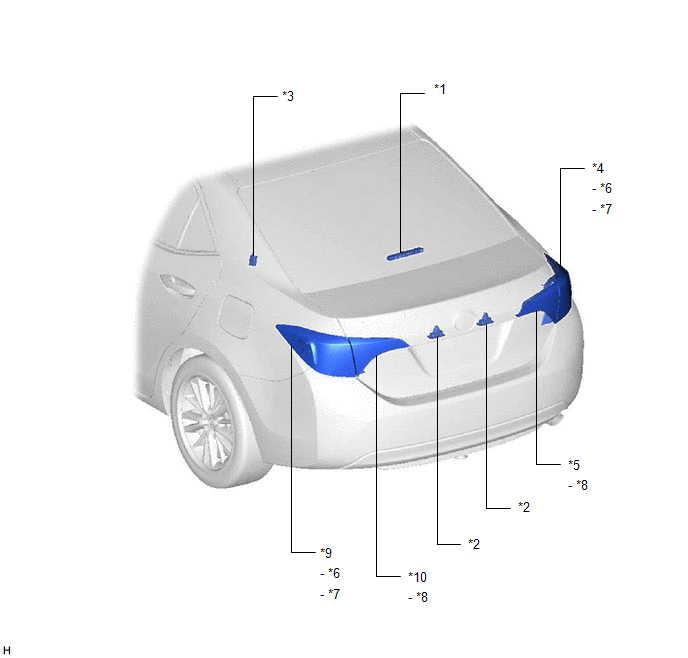

ILUSTRACIÓN

*1

CONJUNTO DE LA LUZ DE FRENO CENTRAL

*2

CONJUNTO DE LA LUZ DE MATRÍCULA

*3

CONDENSADOR DE AJUSTE DE RADIO

*4

CONJUNTO DERECHO DE LAS LUCES COMBINADAS TRASERAS

*5

CONJUNTO DE LAS LUCES TRASERAS DERECHAS

*6

ZÓCALO DE LAS LUCES DE FRENO Y DE LAS LUCES TRASERAS

*7

ZÓCALO DE LOS INTERMITENTES TRASEROS

*8

ZÓCALO DE LAS LUCES DE MARCHA ATRÁS

*9

CONJUNTO IZQUIERDO DE LAS LUCES COMBINADAS TRASERAS

*10

CONJUNTO DE LAS LUCES TRASERAS IZQUIERDAS

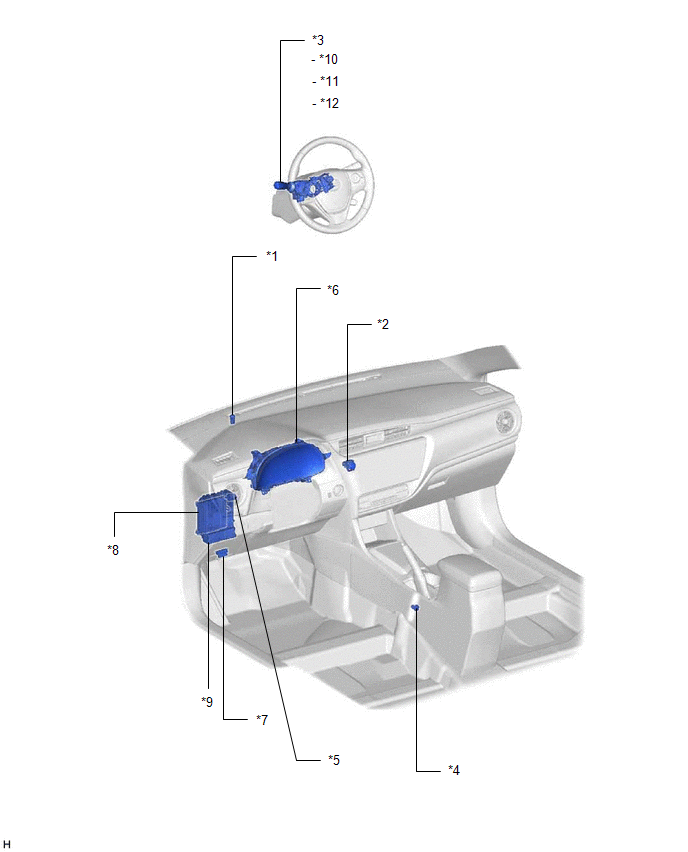

ILUSTRACIÓN

*1

SENSOR DE CONTROL AUTOMÁTICO DE LUCES (con control automático de luces)

*2

CONJUNTO DEL INTERRUPTOR DEL INDICADOR DE ADVERTENCIA DE RIESGO

*3

CONJUNTO DEL INTERRUPTOR DE GRADUACIÓN DE LA LUZ DE LOS FAROS

*4

CONJUNTO DEL INTERRUPTOR DEL FRENO DE ESTACIONAMIENTO

*5

CONJUNTO DEL INTERRUPTOR DE LAS LUCES DE FRENO

*6

CONJUNTO DEL JUEGO DE INSTRUMENTOS

*7

DLC3

*8

ECU PRINCIPAL DE LA CARROCERÍA (ECU DE LA RED MÚLTIPLEX DE LA CARROCERÍA)

*9

CONJUNTO DEL BLOQUE DE EMPALMES DEL LADO DEL CONDUCTOR

- RELÉ DE LAS LUCES TRASERAS

- FUSIBLE TAIL

- FUSIBLE STOP

*10

INTERRUPTOR DE GRADUACIÓN DE LA LUZ

*11

INTERRUPTOR DE CONTROL DE LAS LUCES

*12

INTERRUPTOR DE LOS INTERMITENTES
